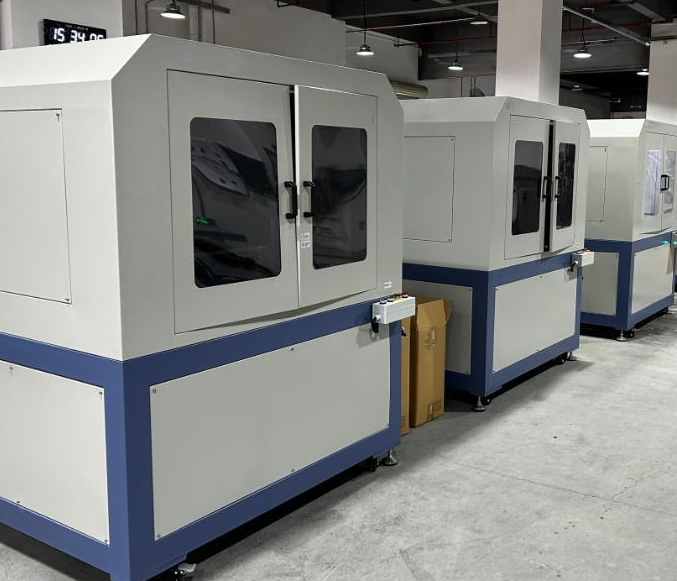

Factory Direct Sales CNC Engraving Milling Machine Center – a high-precision, cost-effective core equipment for machining. Integrating engraving and milling functions, it delivers stable performance, fast processing speed, and exceptional accuracy for metal, carbon fiber materials. Factory-direct supply eliminates middlemen, offering competitive pricing with reliable after-sales support. Ideal for mold making, parts processing, and customized production, it meets diverse industrial demands efficiently, empowering businesses to boost productivity and reduce costs.
Milling Range: 800x600mm
Milling Height: 40mm (Effective 30mm)Positioning Accuracy: +0.1mm
Milling Speed: 150-3600 steps(8000mm/min)
Drive Method: Servo Motor
Software: Weihong Processing SoftwareTool Diameter: p3, φ4 (Optional)
Spindle Power: 3.5kW Air-Cooled Spindle Motor x1Spindle Speed: 2000-18000 rpm/minCooling Method: Air cooling
Drive Command: G-Code
Supported System: Windows 10
Transmission Method: Servo Motor Gear-Rack DriveHousing Material: Powder-Coated Sheet MetalTable Material: Reinforced Aluminum Profile
Gantry Material: 45# Steel
Sample Clamping: T-Slot & Standard Template Clamping
Frame Material: A3 Steel
Computer System: 1 Set
Vertical Computer Case: 1 Unit
Pneumatic Clamps: 4 Sets
Dust-Proof Cover & Noise-Reduction Barrel (Noise Reduction ≥50%)
Sheet Metal with Pre-Installed Drainage Port
Metal and carbon fiber processing
